Categories of system

According to the drive mode of lifting, it can be categorized into three types: Motor-chain type, moter-wirerope type, and hydraulic type.

According to the in and out face relative to the system, it can be categorized into two types: ground type and underground type.

According to the structure pattern, it can be categorized into two types: framework type and rear cantilever type.

Operating principle

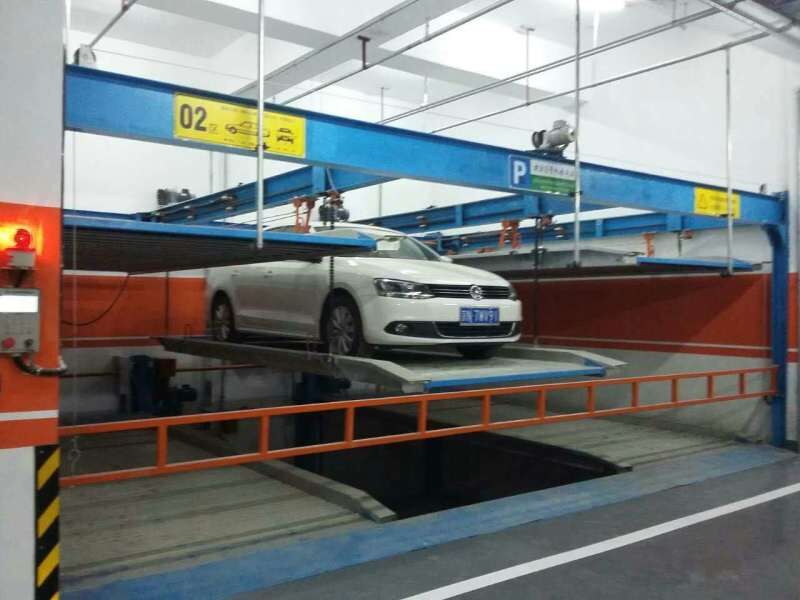

The lift-sliding mechanical parking system can be divided into several floors. The top floor equipment can only move vertically, the ground floor equipment can only move transversely, while the middle floors can move both vertically and transversely. Each floor under the top shall leave one transvers place for adjustment, you can take and park your car on the ground floor directly. But if your car was hung up, the under floors has to be adjusted to spare the descending passage to ground, thus the up floor places shall be taken down for your parking or pick-up.

Features of the system

Saving land resources: this system can be made to 2~8 floors, and can be made to half-underground type, which can save floor space effectively and enlarge the parking capacity.

Modularized designing: each module can be designed with 3~5 places, several modules can be controlled through one control unit by paralleling several modules, and 30 places shall be an optimum choice. while it shall also subject to the location condition and your real demands.

Advanced technology: our anti-falling system, loading board wheels, and chain loop mechanism used in this system have been certified as national practical new-type patents, and the PLC automatic control system adopts bus control technology, which promotes the positioning accuracy and signal transmitting stability, thus decrease the failure rate.

Safe and reliable: this system is equipped with completed mechanical and electrical measuring instruments and protection instruments to secure the user and system safety and the reliable functioning.

Energy conservation and environment protection: due to the use of new technology, our parking system has the features of lower noise, pollution-free, low energy consumption, which satisfy the environmental requirements.

User friendly: the customized interface of this system can be operated by press-buttons and by combination of button and swiping card, which is very convenient to use.

Customized designing: the position and chain lifting point for lifting use is designed on the outermost of the loading board, thus increase the access space, make it more convenient for access.
