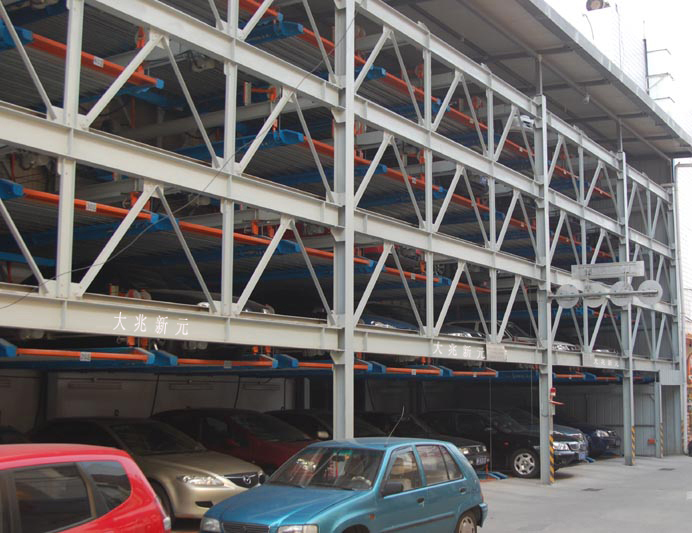

Planning of system

This system can be made to 3~8 floors. A single unit will be control separately, or multiple places of several paralleled units will be controlled through one control unit, which depends on the site condition.

Operating principle

The upper loading board of this parking system can only go up and down, while the ground loading board can only move transversely. One spare place of ground floor for each area has to be reserved for adjusting. You can park or take your car directly while on ground places, and if your car is hung up on upper floor, the corresponding ground place has to be vacant through adjusting of ground places, thus the loading board can carry your car down.

Features of the system

Four- point suspending wire rope for driving system, stable movement and ensure the operate safety.

Making full use of the limited space, doubling the parking capacity, and saving a lot of land resources

PLC computer controlled, pressing button or swiping card can finish the parking or pick-up, simple and convenient.

Equipped with anti-falling device to avoid falling accident, safely and reliably.

Equipped with photoelectrical safety detection device to control the size of the car and parking position, and to park orderly.

Equipped with emergency stop button to avoid the accident in case of the special situation.
